Hydraulic Orbit Motor

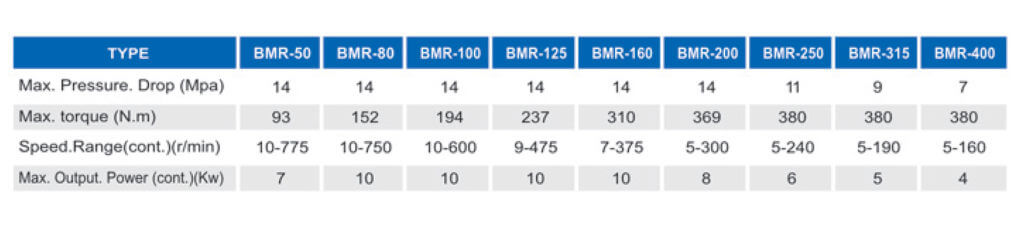

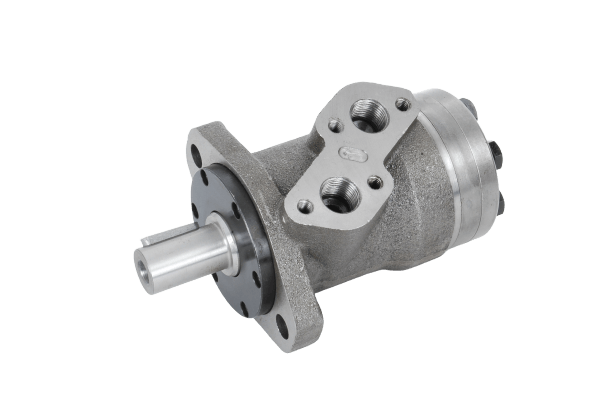

BMR Orbit Hydraulic Motor with Spool Valve
This series of motor, with its shell made of ductile cast iron of adequate intesity, can be applied to situations with less load and interval operation, widely to agriculture, forestry, plastics, machine tools and min machines, such as the module height adjustment of the injection moduling machine, the cleaner, the saw the worktable etc.
Characteristics
- The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
- With the axial oil distribution structure, it is of smaller size and less weight.
- With two inner check valves, no drain connection.
- With cycoid group with the roiler, it has a small friction and high mechanical efficiency.

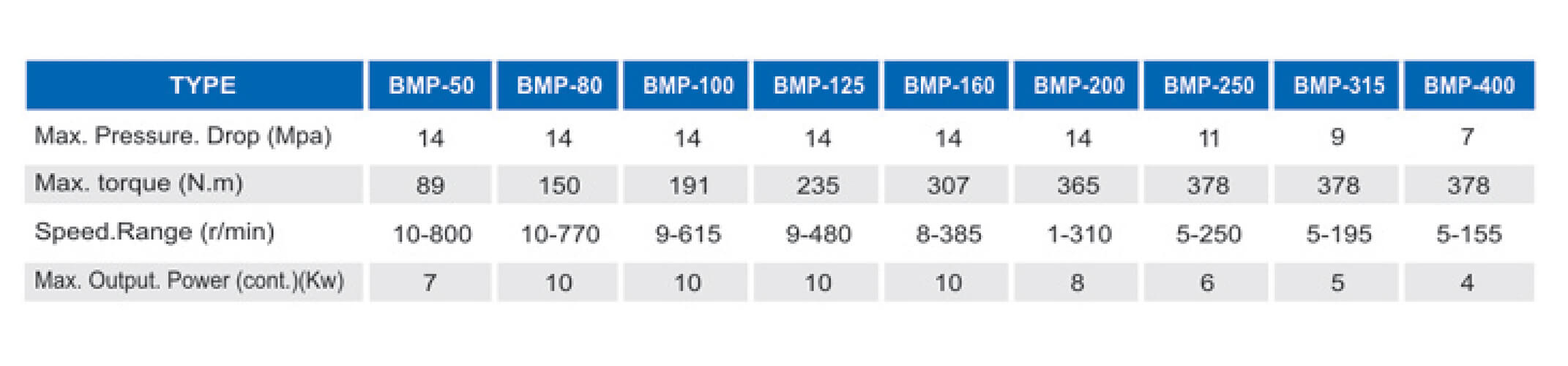

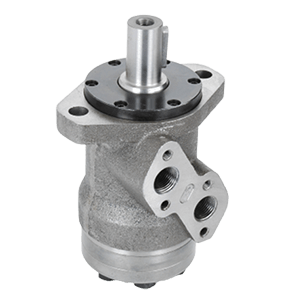

BMP Orbit Hydraulic Motor With Spool Valve
This series of motor are small volume, economical type, which is designed with Spool Valve, which adapt the gerotor gear set design and provide compact volume, high power and low weight
Characteristics
- Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high effiency and long life.
- Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
- Advanced construction design, high power and low weight.

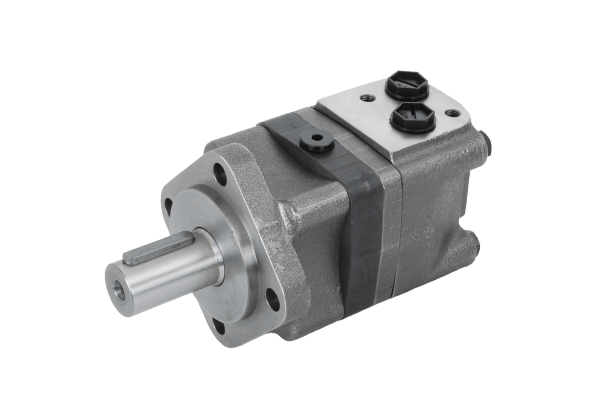

BM Hydraulic Motor
BM Hydraulic motor is one type of high torque low speed hydraulic motors, with high efficiency and long life. BM motor has a wide Speed range, high starting torque and rotating stable at high speed Compact and light, it can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities.
BM hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining and construction mining and construction machinery.

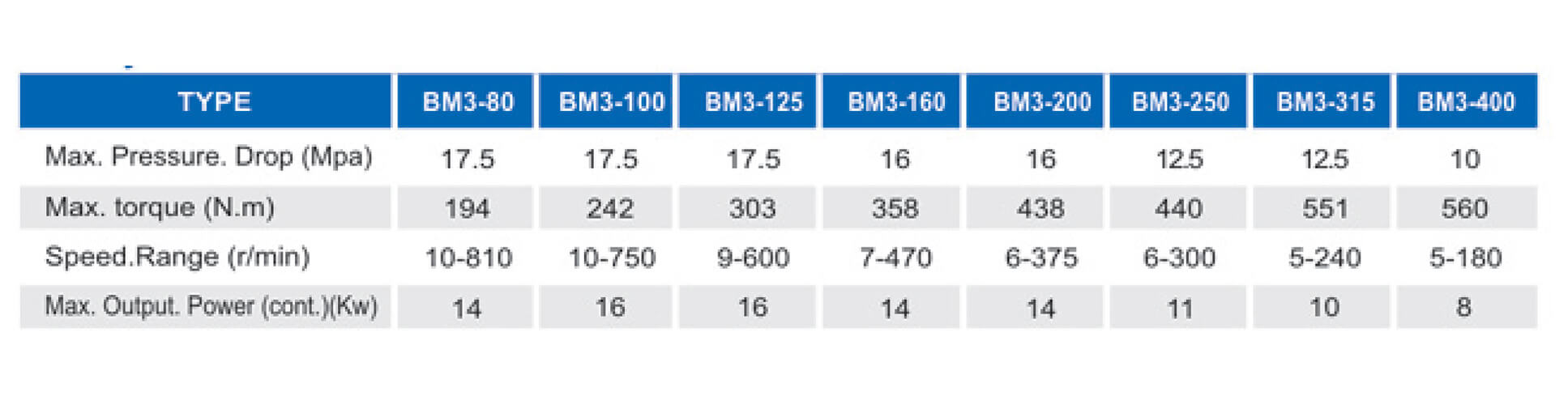

BM3 Hydraulic Motor Technical Data
