Hydraulic Valves

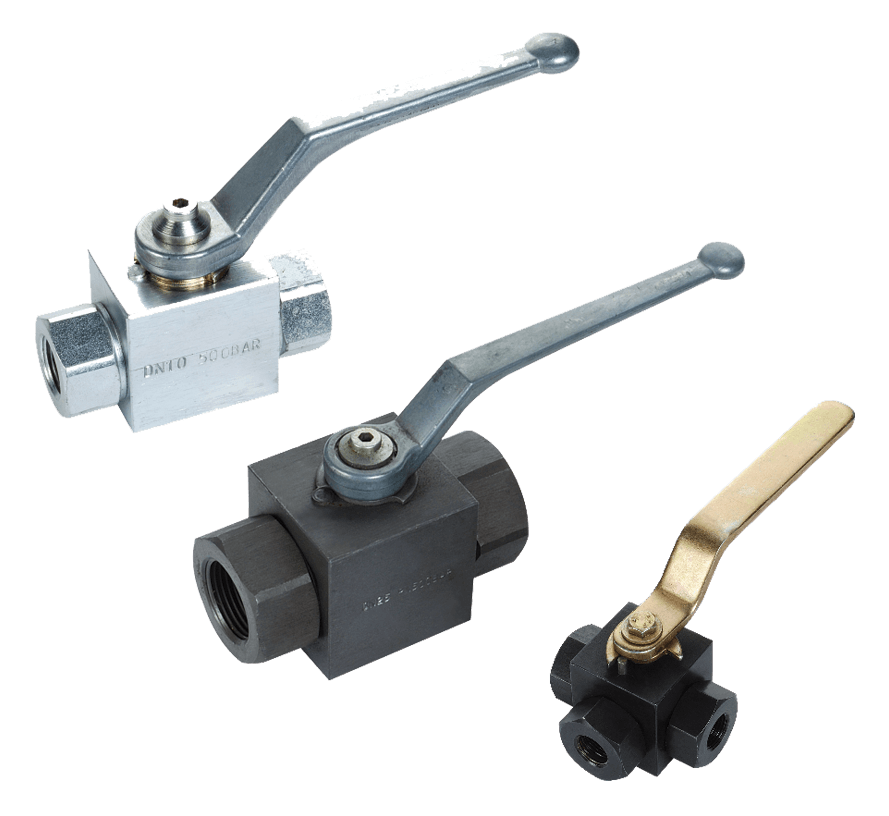

Ball Valve (2 Way / 3 Way) (C-Type, L-Type)
- Material - Carbon Steel/Stainless Steel
- Ball Seal - POM/PEEK/PTFE/GFT/CFT
- Body & Steam Seal - PTFE/NBR/FPM
- Temp. Range - 40o C to 200o C
| SIZE | WORKING PRESSURE (bar) | MAX. FLOW (lpm) |
|---|---|---|
| 1/4″ | 500 | 10 |
| 3/8″ | 500 | 20 |
| 1/2″ | 400 | 30 |
| 3/4″ | 300 | 80 |
| 1″ | 280 | 120 |
| 1″ | 280 | 120 |
| 1 1/4″ | 250 | 180 |
| 1 1/2″ | 220 | 280 |
| 2″ | 200 | 400 |

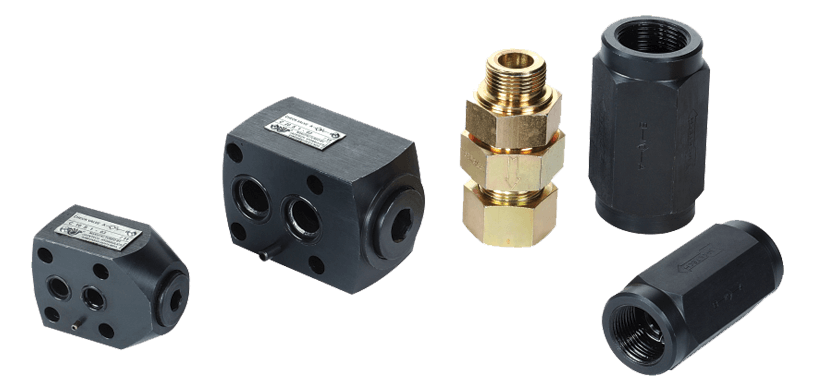

Inline Check Valve / Sub plate valve
- Tube connection check valve RHD, RHV & RHZ avilable in 6mm to 42mm
- Steel poppet type construction
- Max. Working pressure 350 bar
- Prevents flow in reverse direction
- Choice of cracking pressure 0.5 to 15 bar
| MODEL | CONNECTION BSP(F) | MAX. FLOW (lpm) |
|---|---|---|
| C-06-T C-06-S |
1/4″ | 10 |
| C-08-T | 3/8″ | 20 |
| C-10-T C-10-S |
1/2″ | 30 |
| C-16-T | 3/4″ | 80 |
| C-20-T C-20-S |
1″ | 120 |
| C-25-T | 1 1/4″ | 200 |
| C-30-T C-30-S |
1 1/2″ | 280 |

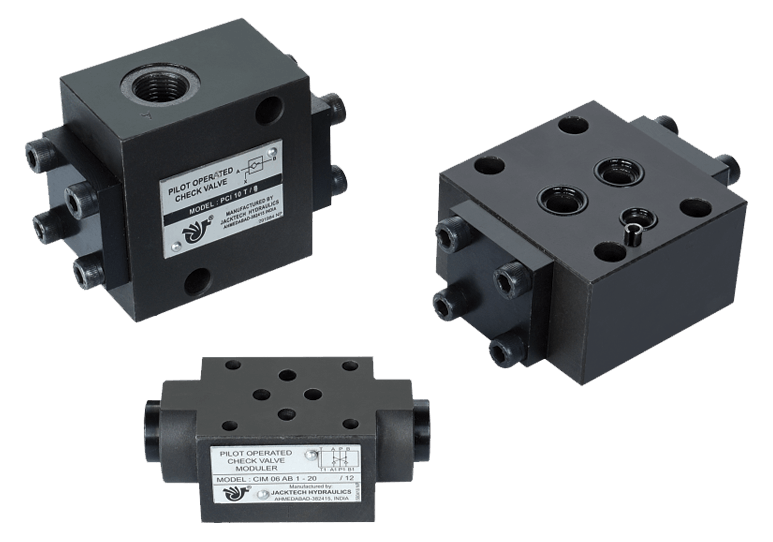

Pilot Operated Check Valve
- Steel poppet type construction
- Max. Working pressure 350 bar
- Prevents flow in reverse direction
- Type: Threaded / Subplate / Modular
| MODEL | CI-10T
CI-10S |
CI-20T
CI-20S |
CI-30T
CI-30S |
MODULAR | |
|---|---|---|---|---|---|
| CIM-06 | CIM-10 | ||||
| CONNECTION BSP(F) | 1/2″ | 1 | 1 1/2″ | — | — |
| MAX. FLOW (lpm) | 80 | 160 | 350 | 30 | 60 |
Flow Control & Check Valve
- Integrated check valves allows reversed free flow from outlet to inlet
- Max. Working pressure 350 bar
- Type: Threaded / Modular
| MODEL | DV-08 DRV-08 | DV-10 DRV-10 | DV-12 DRV-12 | DV-16 DRV-16 | DV-20 DRV-20 | MODULAR TCM-06 | MODULAR TCM-10 |
|---|---|---|---|---|---|---|---|
| CONNECTION BSP (F) | 1/4" | 3/8" | 1/2" | 3/4" | 1" | --- | --- |
| MAX. FLOW (LPM) | 10 | 20 | 40 | 70 | 120 | 30 | 60 |

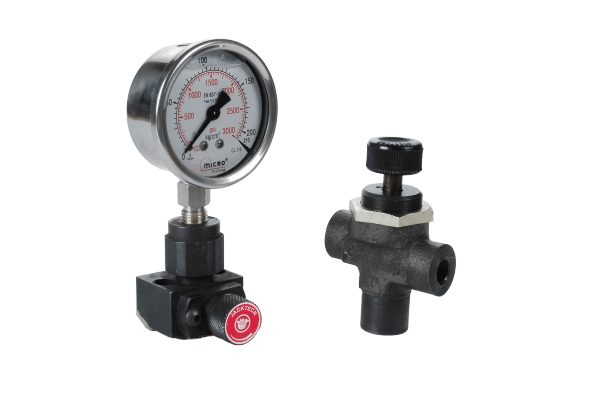

Gauge Isolater Valve
- Working: Push to read
- Type: Threade / Subplate
- JT-200 M: Without lock
- JT-200 ML: With lock
| MODEL | JT-200 ML | JT-200 M | GIVS | GIVS |
|---|---|---|---|---|
| PORT CONNECTION BSP (F) | 1/4" | 1/4" | 1/4" | 3/8" |

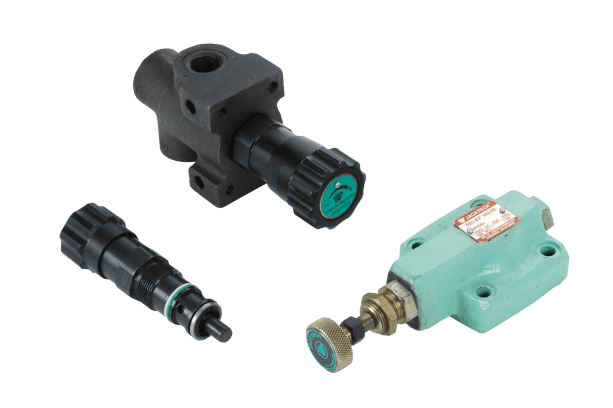

Direct Operated Pressure Relief Valve
- Direct acting with guided cushioned poppet
- Available in cartridge, threaded & subplate type.
| MODEL | DPRH-06 | DPRH-10 | DPRH-20 | YGB-01 |
|---|---|---|---|---|
| MAX. WORKING PRESSURE (bar) | 315 | 315 | 315 | 315 |
| MAX. FLOW (lpm) | 30 | 80 | 160 | --- |

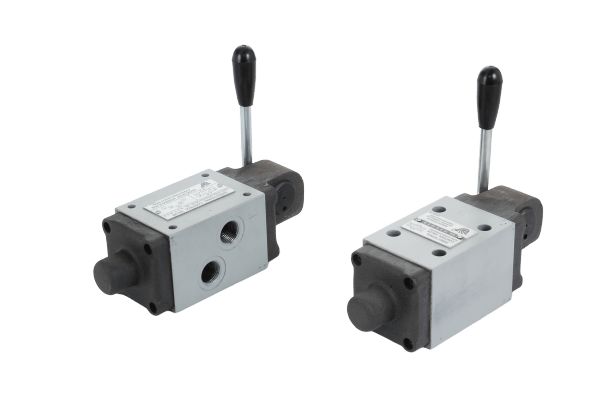

Direction Control Valve
- Completely encapsulated control mechanism for protection against dirt.
- Five chamber design.
- Wide variety of spools availabel in subplate / threaded model.
- Spool availabel A, C, D, E, G, H, J.
| MODEL | 4DL 10G*** |
|---|---|
| MAX. WORKING PRESSURE (bar) | Port P, A & B....315 Port T..............100 |
| MAX. FLOW (lpm) | 100 |

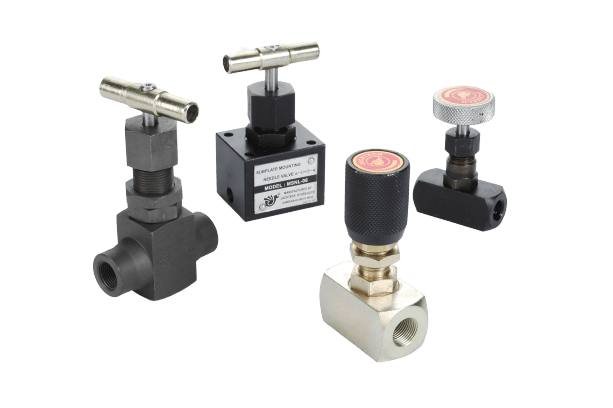

Needle Valve / Shutt Off Valve
- MS & SS bar stock, screwed bonnet, metal to metal construction.
- Variety range of end connection include 1/4" to 1" BSP.
- Maximum Pressure 350 bar
