Variable Displacement Pump

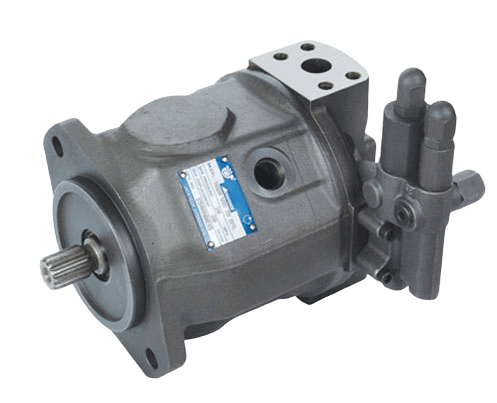

HA - 10VSO Series Variable Displacement Pump Open Circuit
- Size: 28...140
- Series 31 Nominal Pressure 28 Mpa
- Peak Pressure 35 MPA
- Variable Displacement axial piston pump of swash plate design for hydraulic open circuit systems
- Flow is proportional to drive speed and displacemnt, It can be infinitely varied by adjustment of the swashplate.
- ISO mouting flang.
- Flang connections to SAE metric.
- 2 case drain ports.
- Good suction characteristics.
- Permissible continous pressure 28 MPa.
- Low noise level.
- Long service life.
- Axial and radial loading of drive shaft possible.
- High power-weight ratio, Wide range of controls.

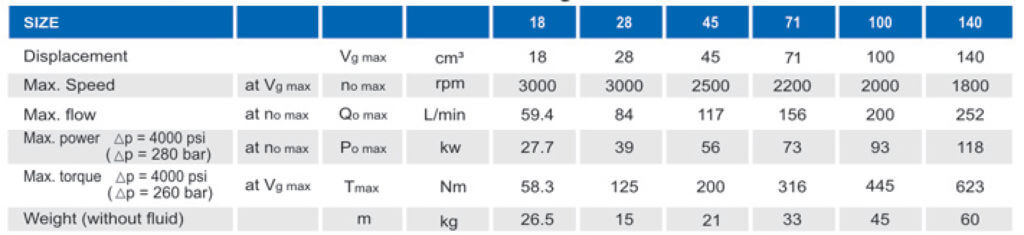

Table of Valves
(Theoretical value, without considering nmh and n; values rounded)
Notes:
Values shown are valid for an absolute pressure of 1 bar at suction port If the flow is reduced of if the inlet pressure is increased the speed may be increased.

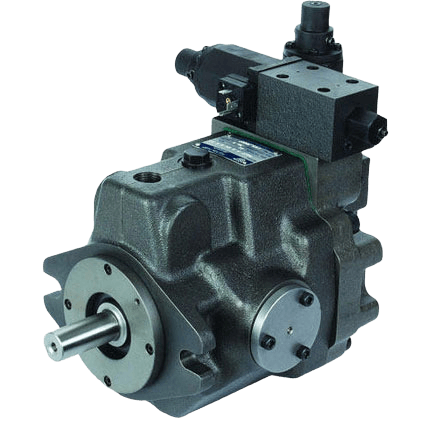

HA Series Variable Displacement Piston Pumps
HA series variable displacements piston pumps has high efficiency, lower noise and accomplishment energy-saving characteristics and so widely used in plastic injection machinery, pressure founding machinery, tools machinery, chemical and light industry field and so on. It has two kinds of control type, which are pressure compensator type (“01” type) and proportional electro-Hydraulic load sensing type (“04” Type).
Features
- Hassle free performance
- Longer service life
- Easy operations
